IQ DW MINI EXTENDED-S

FEATURES

• Encrypted S-Line sensor technology protects signals sent to the IQ Panel while still providing support for legacy 319.5 systems.

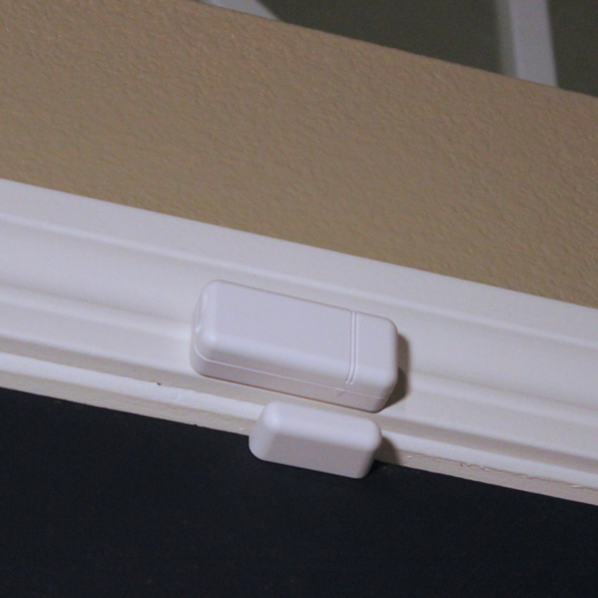

• Can be easily mounted on doors or windows with included adhesive
• Alerts IQ Panel if moved more than 1”
• Can be programmed as “Safety Sensor” for medicine cabinets, chemical storage, safes or storage closets
• Using Alarm.com you can get a text if your door or window is left open.
• Create automation rules like “turn on light when door is opened” or “adjust thermostat if window left open”
• Requires two (2) 3V CR2032 Batteries
• The built-in tamper switch triggers an alert if the cover is removed.
• Create custom names for each sensor, determine unique chime type, choose voice prompts on or off

SPECIFICATIONS

• Sensor: 2.5”H x 1”W x .5”D.
• Wireless signal range: 600ft (200M), open air.
• Code outputs: Tamper, tamper restore, alarm (primary open), alarm restore (primary close), external alarm (secondary wired open), external restore (secondary wired closed), low battery.
• Transmitter frequency: 319.5 MHz.
• Unique code ID
• Supervisory keep-alive interval: 70 minutes.
• RF Peak field strength: typical 36000 uV/m at 3m
• Operating Temperature: -10C~50C
• Relative Humidity: 5-95% Non-Condensing
• Storage Temperature: -40-80C.
• Replace battery with exact replacement every 5 years with 3V CR2032 Lithium (x2).

DOWNLOADS

• Download IQ Mini DW EXT-S Quick Guide
